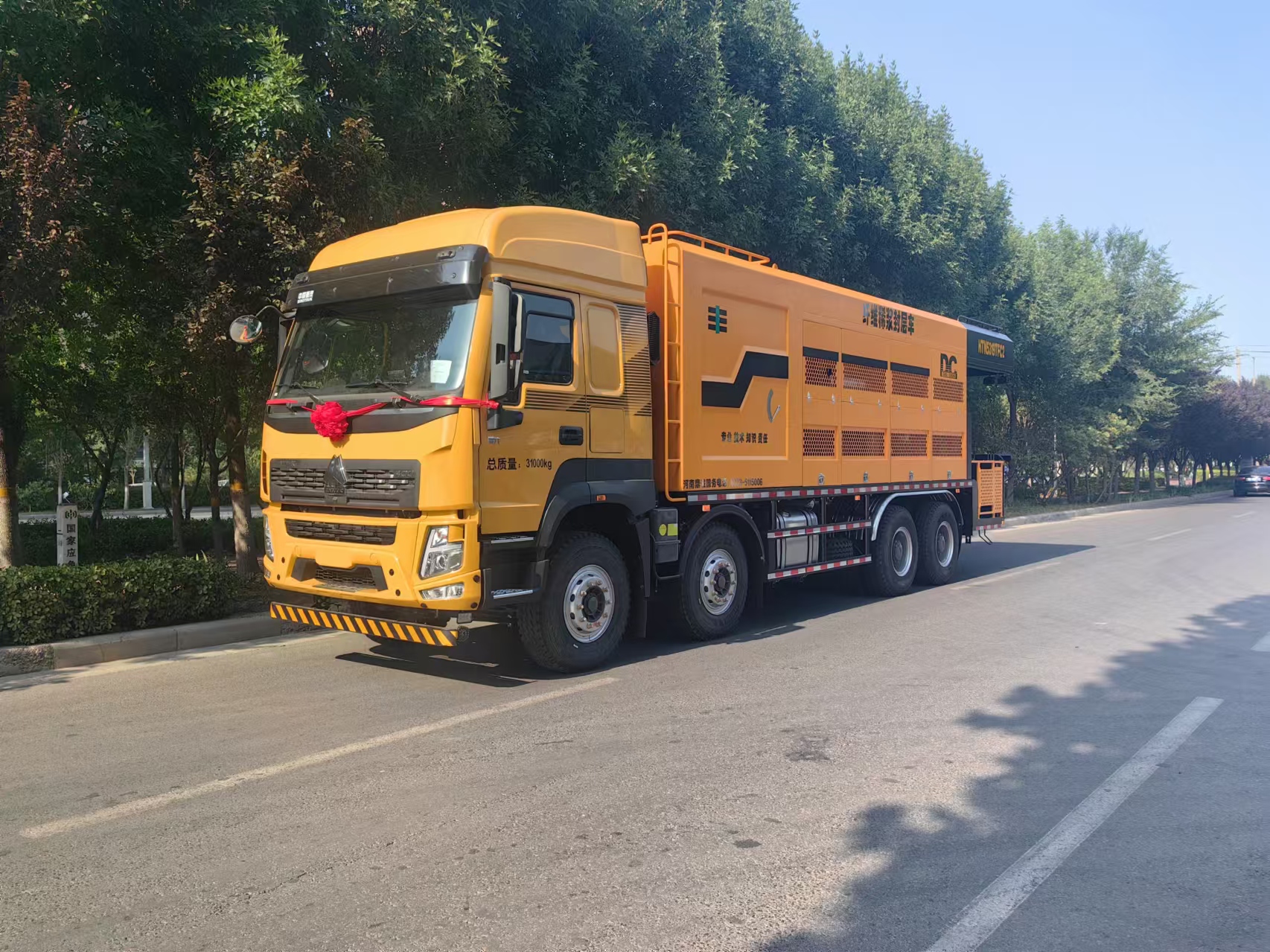

Slurry Seal / Micro Surfacing Machine

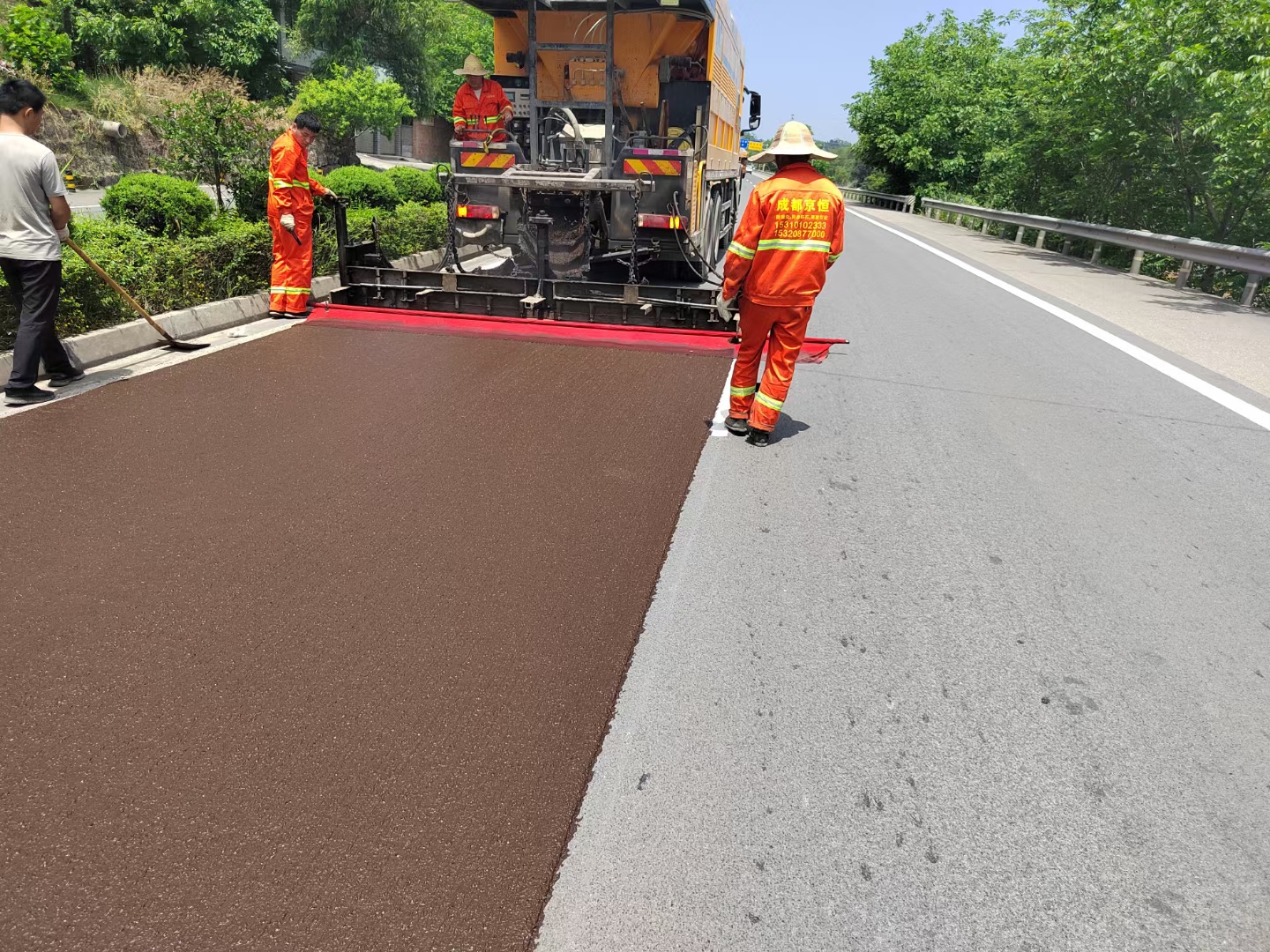

Intelligent micro surfacing paver is mainly applied to treat the pavement diseases like friction resistance reduction, cracks and ruts for improving its performances of anti-slide and waterproofing, evenness and travelling comfort. This equipment can be widely used in construction of slurry sealing, modified slurry sealing and micro surfacing. This equipment is a new type of hi-tech product for road maintenance at international advanced level on the basis of foreign advanced technologies. This product is tested and optimized in constructions for many years, which is the ideal machinery for slurry sealing and micro-surfacing constructions.
Technical Parameters
Model | XF1645F | XF1235 | XF1035 | XF0335 |
Aggregates Hopper Volume | 16 CBM | 12 CBM | 10 CBM | 3 CBM |
Auxiliary Engine Power | 110kw/2300rpm | 110kw/2300rpm | 70kw/2400rpm | 75kw/2400rpm |
Emulsion Tank Volume | 4.5 CBM | 4 CBM | 3.5 CBM | 1.2 CBM |
Water Tank Volume | 4.5 CBM | 4 CBM | 3.5 CBM | 1.2 CBM |
Additive Tank Volume | 400 L | 600 L | 400 L | – |
Filler Tank Volume | 2×0.5 CBM | 2×0.5 CBM | 2×0.5 CBM | 1×0.5 CBM |
Max. Discharging Volume of Mixer | 4.5 T/min | 3.5 T/min | 3.5 T/min | 3.5 T/min |
Min. Vehicle Speed | 12 m/min | 2 km/h | 1 km/h | 1 km/h |
Paving Depth | 3-15 mm | 3-15 mm | 3-15 mm | 3-15mm |
Width of Paving Tank | 2500-4300 mm | 2500-4300 mm | 2500-4300 mm | 1600-2500mm |
Fiber Dosing | 0.1%~0.25% | – | – | – |
Fiber Length | 12/24 mm | – | – | – |
